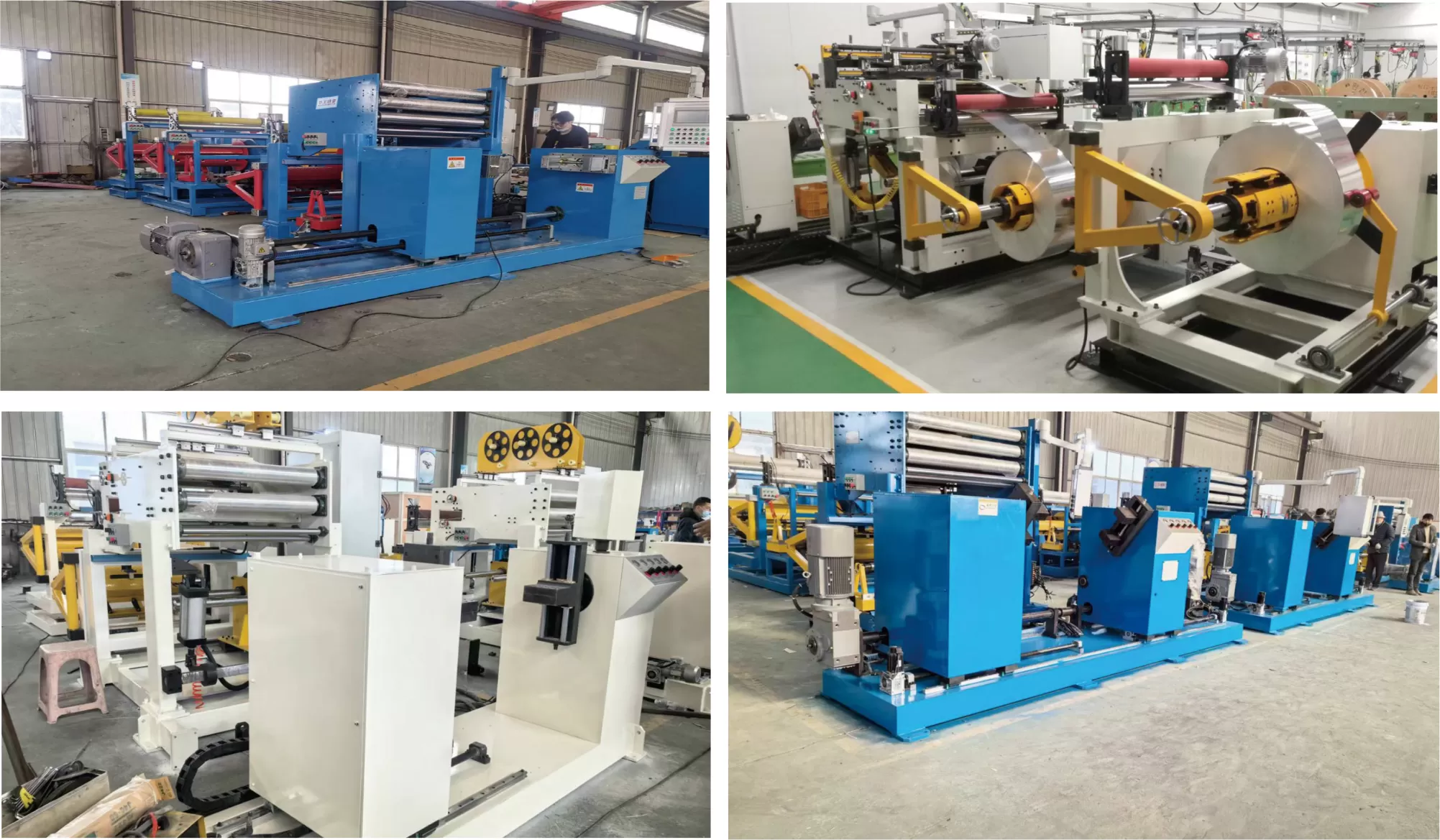

电抗器箔绕机BRJ-400-1200

电抗器箔绕机（人机界面控制、双伺服夹持卷绕）

lnductor Foil Winding Machine(Human-Machine Interface

Control,Dual Servo Clamping Winding)

概 述

双伺服夹持电抗器箔绕机是一种先进的自动化绕线设备，专门用于电抗器箔材的精确绕制。该设备利用双伺服电机进行精确控制，确保绕制动作的同步性与稳定性。其精密的夹持机构能够保证箔材在绕制过程中的平整与紧密，从而提升电抗器的品质和可靠性。具备高效和高精度的特性，适用于大批量生产，有效减少生产成本，提高生产效率。

Overview

The dual servo clamping reactor foil winder is an advanced automatic winding equipment, specifically designed for the precise winding of reactor foil materials. This equipment utilizes dual servo motors for precise control, ensuring the synchronization and stability of the winding action. Its precise clamping mechanism guarantees the flatness and tightness of the foil during the winding process, thereby enhancing the quality and reliability of the reactor. With its characteristics of high efficiency and high precision, it is suitable for mass production, effectively reducing production costs and improving production efficiency.

设备特点

快速高效：双伺服电机的驱动使得绕线速度大幅提升，有效缩短生产时间。

精确稳定：双伺服电机的精确控制确保了绕线的均匀性，提高了产品的质量。

操作便捷：设备设计人性化，操作界面直观，简化了操作流程，降低了操作人员的培训成本。

自动化程度高：设备具备自动绕线、自动张力控制等功能，减少了人工操作，提高了生产效率。

适应性广泛：适用于多种规格的电抗器箔绕制，满足不同客户的定制需求，提高了设备的适用范围。

Device Characteristics

Fast and efficient: The dual servo motor drive significantly increases the winding speed, effectively reducing production time.

Precise and stable: The precise control of the dual servo motor ensures the uniformity of the winding, improving the quality of the product.

Easy to operate: The equipment is designed with a humanized approach, and the intuitive operation interface simplifies the operation process, reducing the training cost for operators.

High degree of automation: The equipment is equipped with automatic winding, automatic tension control and other functions, reducing manual operations and improving production efficiency.

Wide adaptability: Suitable for winding of various specifications of reactor foil, meeting the customized needs of different customers, and improving the applicability of the equipment.

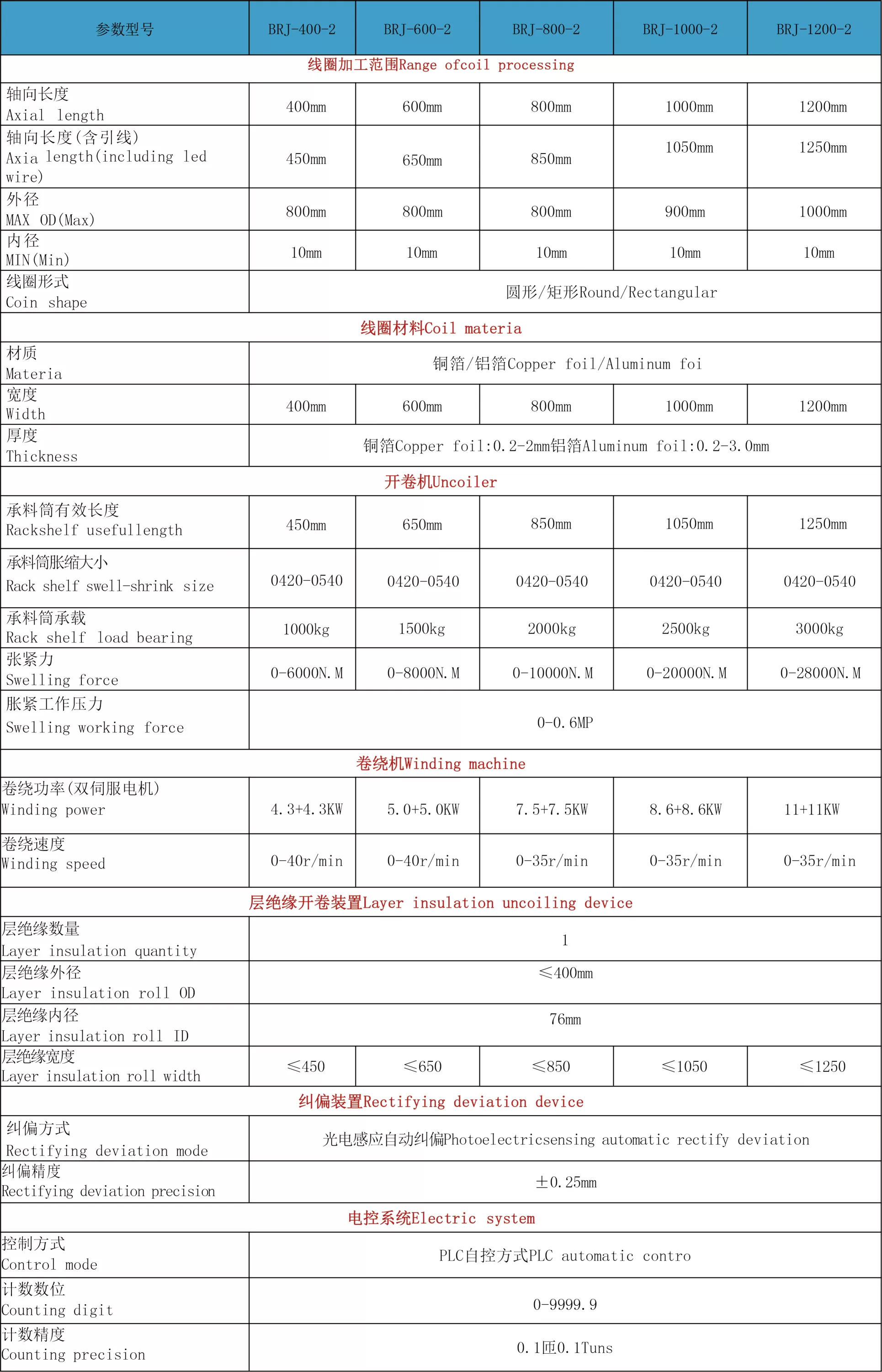

主要技术参数

Main technical parameters
