铁芯装配翻转台ZPT3T-150T型

铁芯装配翻转台

Iron core assembly and flip table

概 述

非晶器身装配台是用于组装非晶变压器器身的关键设备。它通常包括一个稳固的平台，用于放置变压器的铁芯和绕组等主要部件。装配台设计要确保足够的稳定性，以便在装配过程中保持部件的精确对准。此外，装配台可能配备有各种夹具和定位装置，以帮助操作人员快速、准确地完成装配工作。在非晶合金材料的变压器生产中，由于非晶合金对磁场的响应特性，装配台还需要考虑磁路设计，以减少对非晶材料性能的影响。

Overview

The amorphous core assembly table is a key piece of equipment used for assembling the core body of amorphous transformers. It typically includes a sturdy platform for placing the main components of the transformer, such as the core and windings. The design of the assembly table must ensure sufficient stability to maintain precise alignment of the components during the assembly process. Additionally, the table may be equipped with various clamps and positioning devices to assist operators in quickly and accurately completing the assembly work. In the production of transformers made from amorphous alloy materials, due to the magnetic response characteristics of amorphous alloys, the assembly table also needs to consider magnetic circuit design to minimize the impact on the performance of the amorphous material.

设备特点

稳定性好：采用高质量材料和结构设计，确保装配台在长时间运行中保持稳定性能。

易于操作：用户友好的界面设计，使得操作人员能够快速上手，减少培训成本。

安全性高：装配台配备多重安全保护措施，确保操作人员和设备的安全。

适应性强：能够适应不同尺寸和形状的非晶材料，满足多样化生产需求。

维护简便：设计注重维护的便捷性，降低维护成本和时间。

Device Characteristics

High stability: High-quality materials and structural design ensure the assembly table remains stable during long-term operation.

Easy to operate: User-friendly interface design allows operators to get up to speed quickly, reducing training costs.

High safety: The assembly table is equipped with multiple safety protection measures to ensure the safety of operators and equipment.

Strong adaptability: Able to adapt to amorphous materials of different sizes and shapes, meeting diverse production needs.

Easy maintenance: Design focuses on the convenience of maintenance, reducing maintenance costs and time.

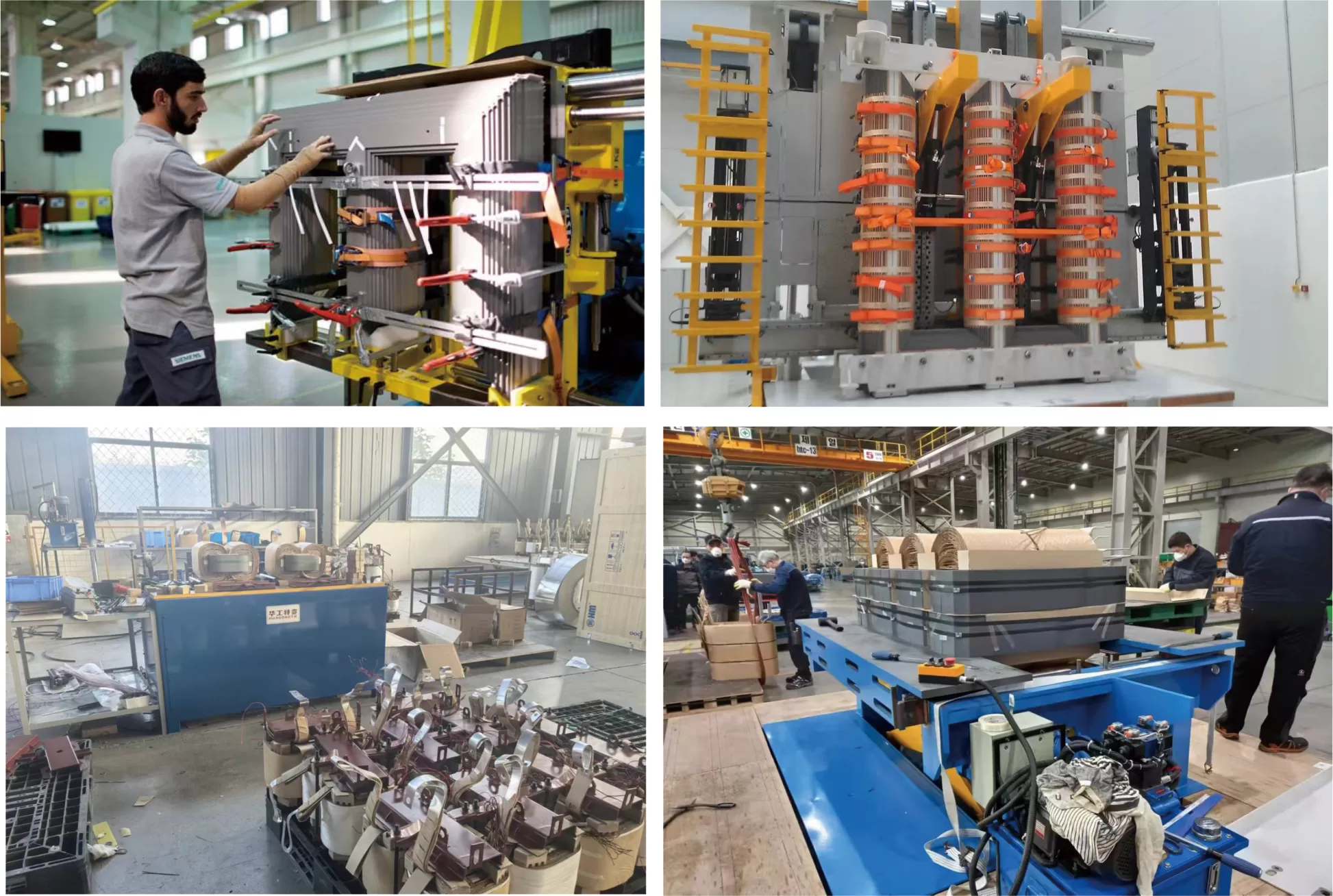

客户现场照片

Customer live photos

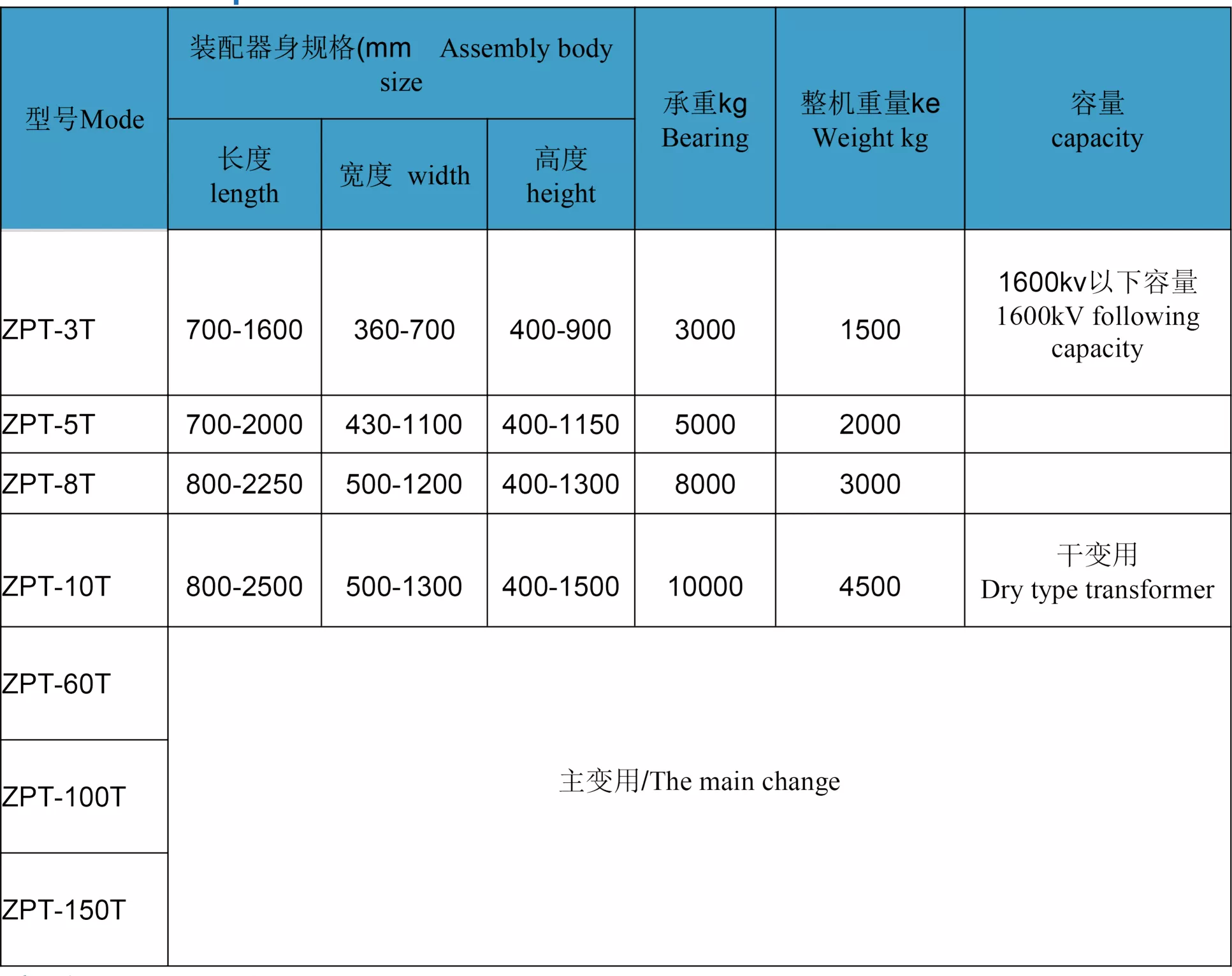

主要技术参数

Main technical parameters
