立体三角卷铁芯箔绕机BRJ-800-1800型

立体三角卷铁芯绕线机

Three-dimensional Triangular Wound Core Winding Machine

概述

大型立体三角铁芯绕线机，专为生产大型立体三角铁芯而精心设计的自动化设备，在变压器和电感器等电磁元件的制造过程中发挥着至关重要的作用。该设备以其卓越的效率和精确度著称，能够迅速完成铁芯的绕制工作，有效降低对人工的依赖，提升生产效率和产品质量。通常情况下，该绕线机配备先进的控制技术，确保绕线过程的稳定性和一致性。此外，它可能还集成自动上料、自动排线、自动检测等自动化功能，实现绕线过程的全自动化。

Overview

The large-scale three-dimensional triangular core winding machine is a specialized automated equipment designed for the production of large-scale three-dimensional triangular cores. It plays a crucial role in the manufacturing process of electromagnetic components such as transformers and inductors. The machine is renowned for its exceptional efficiency and precision, capable of rapidly completing the winding of cores, effectively reducing dependence on manual labor, and enhancing production efficiency and product quality. Typically, the winding machine is equipped with advanced control technology to ensure the stability and consistency of the winding process. In addition, it may also integrate automated functions such as automatic feeding, automatic wire laying, and automatic detection, achieving full automation of the winding process.

设备特点

精确定位功能：能够确保铁芯和线圈的精确放置，实现均匀的匝数和紧密的线圈排列。

自动化操作：通过程序控制，机器能够自动执行铁芯的固定、线圈的缠绕、成品卸载操作，有效提升生产效率。

多样化适应性：适用于各种尺寸和形状的铁芯绕制，满足不同产品的定制需求。

稳定性可靠性：采用先进的机械设计和电子控制系统，保证设备长时间稳定运行，降低故障发生概率。

Device Characteristics

Precision positioning function: ensures the accurate placement of the core and coil, achieving uniform turns and tight coil arrangement.

Automated operation: through program control, the machine can automatically perform core fixation, coil winding, and product unloading operations, effectively improving production efficiency.

Diverse adaptability: suitable for winding of cores of various sizes and shapes, meeting the customization needs of different products.

Stability and reliability: advanced mechanical design and electronic control systems are adopted to ensure long-term stable operation of the equipment and reduce the probability of failures.

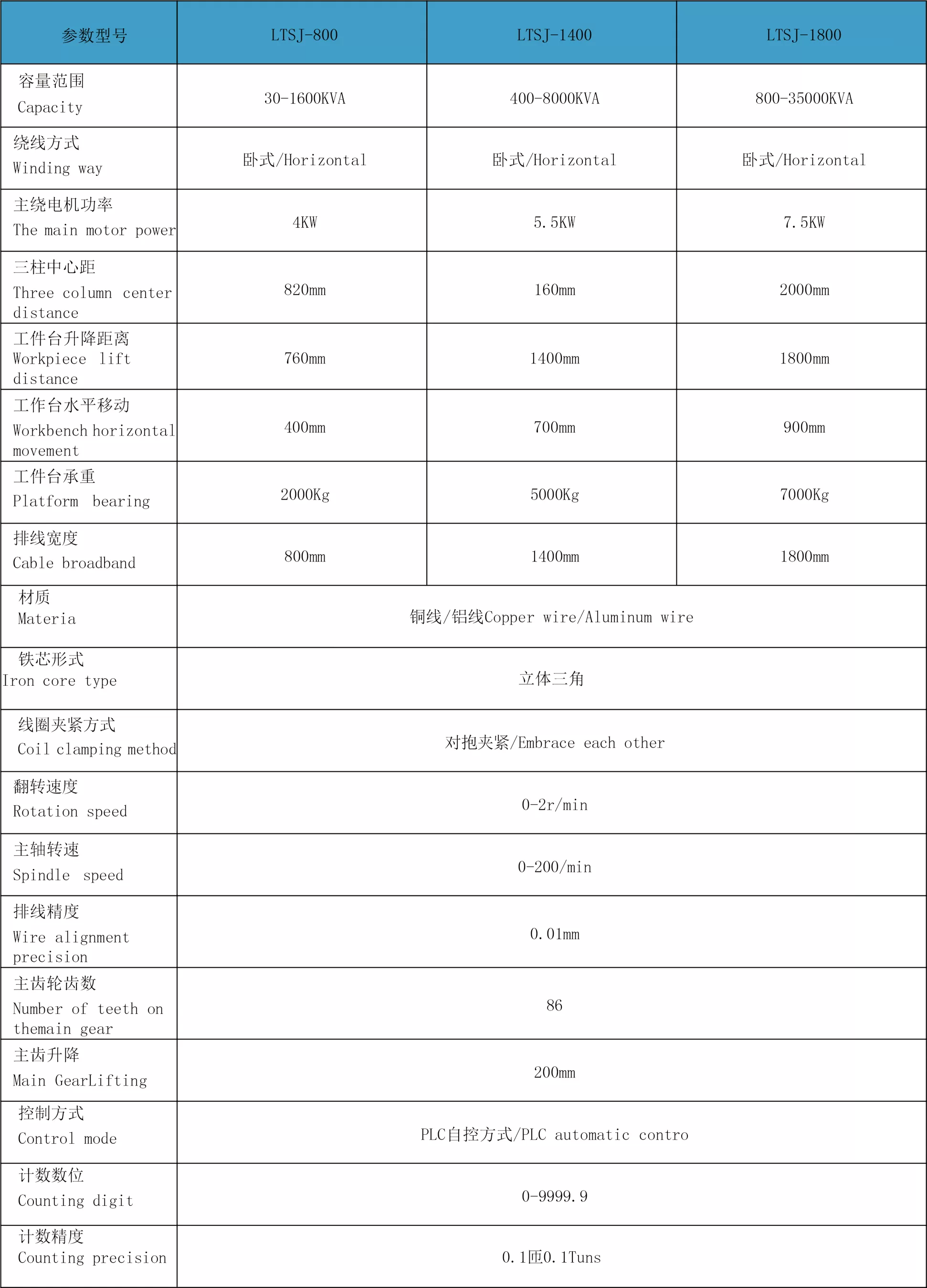

主要技术参数

Main technical parameters
